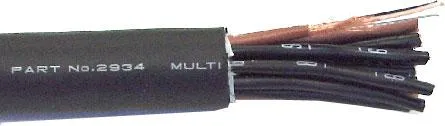

Name: Mogami W3042 - 8pr CL2 EZ/ID Snake Cable (500 Ft./152 Meters)
SKU: 271087

Product Details ＋

The Mogami Bulk W3042 - 8 Ch. CL2 Rated Snake Cables (Multicore Microphone Cables). Available by the spool only. Price per foot.

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.

XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.

Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).

Easy cable identification system:

Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.

Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs.

Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.

Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.

CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.
